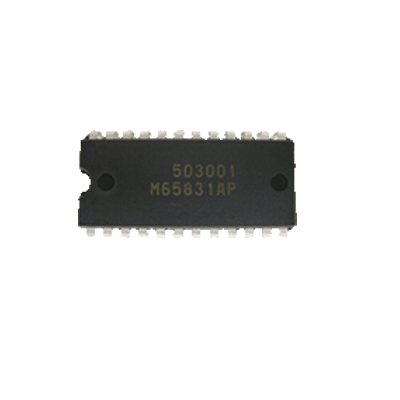

The M65831A is an IC developed for producing echo effects added to voice signals
picked up by microphone for karaoke applications.
The IC has the largest memory among the digital delay series. As it’s design is aimed
at high performance, it is best suited to provide radio cassette tape recorders and
miniature unit audio system with quality echo function.
Being pin compatible with the M65830CP / FP and M65843AP / FP, the M65831AP / FP is
suitable for upgrading the series.

•Built-in input / output filters, A-D and D-A conver ters, and
memory realize a delay system with only a single chip
•Capable of composing low-noise and low-distortion delay
system at low cost by ADM system
(No=-92dB typ, THD=0.5% typ)
•Control mode selections available from 2 kinds : easy mode
using parallel data and microcomputer mode using serial
data
•Sleep mode can be selected to stop IC functions
•Built-in automatic reset circuit

Supply voltage range VCC,VDD=4.5 to 5.5V
